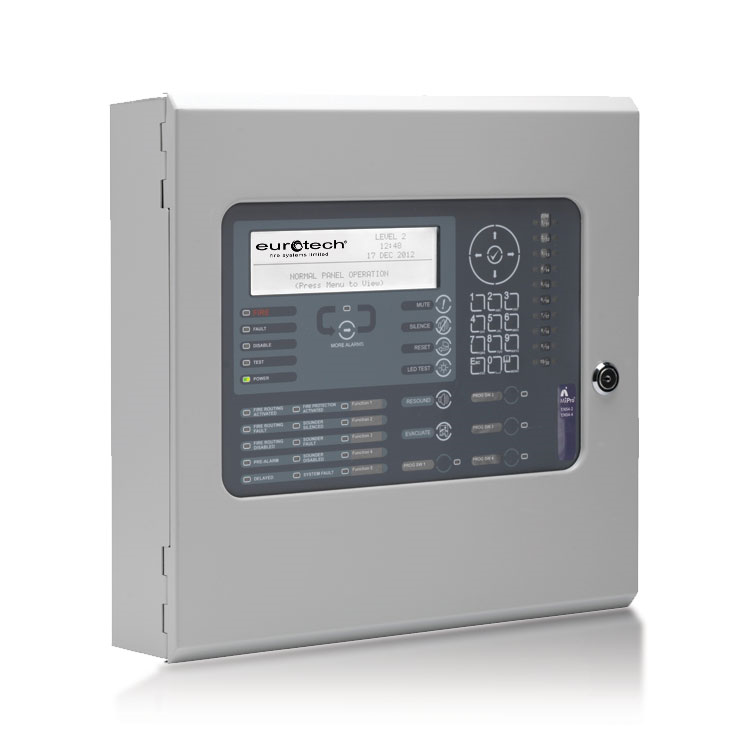

MX-5101 Advanced MxPro5 Single Loop Intelligent Fire Control Panel (Apollo / Hochiki Protocol)

Advanced 1 Loop MxPro5 Fire Control Panel MX-5101

The MxPro5 Single Loop Intelligent Fire Control Panel MX-5101 is a state-of-the-art solution designed for seamless fire detection and control across diverse environments. With advanced technology and user-centric design, this panel ensures reliability, scalability, and ease of use, making it suitable for both small installations and large multi-zone networks.

Overview

The MxPro5 is equipped with a single-loop driver card and features:

• 20 programmable zonal LEDs with customizable slide-in labels.
• 25 system LEDs for comprehensive status updates.
• 4 programmable function buttons with LED confirmation for operational flexibility.

At its core, the panel boasts dual flash-based microprocessor technology, a graphical LCD display, and a tactile keypad for intuitive “select & click” programming. These features streamline configuration and simplify operation for engineers and end users.

Innovative Programming Capabilities

• Dynamic Zoning & Cause-and-Effect Programming: Ideal for a wide range of applications, from simple setups to complex multi-area systems.
• Enhanced Diagnostics: Advanced trace tools ensure rapid troubleshooting and reliable performance.
• On-Site or Remote Configuration: Use the onboard alphanumeric keypad or PC-NeT Configuration Software for effortless customization.

Seamless Network Integration

Adding a network card transforms the MxPro5 into a fully networkable solution. It enables:

• Communication with other MxPro5 panels, terminals, or peripherals like ipGateway™.
• Integration with Building Management Systems (BMS) or graphical interfaces.
• True peer-to-peer networking that supports up to 2000 zones in fault-tolerant loop or radial configurations.

Key Features

• Protocol Support: Compatible with Apollo, Argus Vega, Hochiki ESP, and Nittan Evolution protocols.
• User-Friendly Interface: Configurable LCD display supports multiple languages.
• Installer-Friendly Design: Includes Auto-Learn, Loop Detection, and onboard scope functionality.
• Expansion Options: Integral P-Bus for additional modules and accessories.
• Comprehensive Compliance: Fully certified to BS EN54 parts 2, 4, and 13.
• Connectivity Options: Features USB and RS232 ports for direct PC or modem connections.
• Durable Chassis: Removable with plug-in connectors for straightforward installation and maintenance.

Part Numbers & Enclosure Options

The MxPro5 is available in multiple configurations to suit specific site requirements:

• MX-5101: Small enclosure.
• MX-5101M: Medium enclosure.
• MX-5101L: Large enclosure.
• MX-5101D: Deep large enclosure.
• MX-5101R: 19″ rack-mounted configuration.

Downloads:

MX-5101 Datasheet
