Intelligent Optical Smoke Detector – c/w Isolator EURV-PI

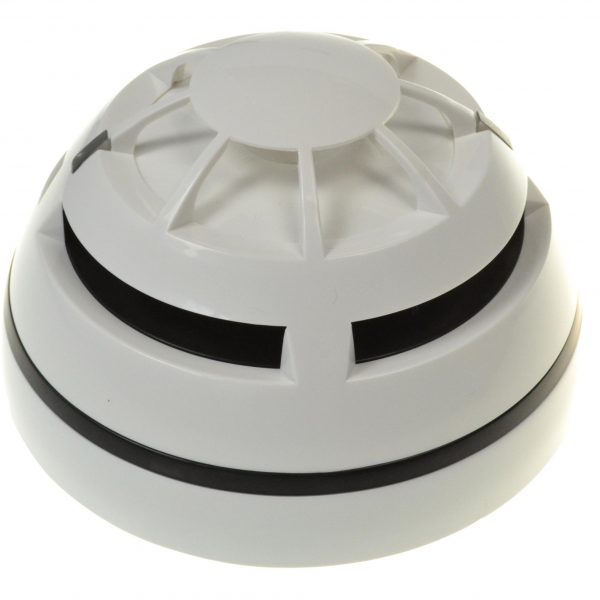

EURV-PI Intelligent Optical Smoke Detector
The EURV-PI Intelligent Optical Smoke Detector from Eurotech Fire Systems is designed to offer the earliest fire warning while minimizing false alarms. Utilizing the Tyndall effect, this detector continuously samples the air in the protected area, providing highly accurate detection.

With built-in DRC dust restrict technology, the EURV-PI ensures high immunity to airborne contaminants, making it highly reliable in a range of environments. It features a bi-directional isolator for protection against wiring faults, and it supports auto addressing on compatible control panels. The detector is fully digital and operates on Eurotech’s unique protocol, ensuring seamless integration with a wide variety of European control panels.

Key features include a customizable range of décor-line finishes and bespoke options to match specific requirements. This detector operates within a wide temperature range (-30°C to +70°C) and offers excellent humidity tolerance (up to 95%). Its compact design, weighing just 130g and measuring 60mm x 110mm, makes it easy to install in various settings.

Key Specifications:

• Operating Voltage: 18-40 Vdc
• Standby Current: 85 μA
• IP Rating: IP40
• Max Humidity: 95%
• Temperature Range: -30°C to +70°C
• Alarm Threshold: 58°C (RoR A1R), 78°C (Class BS)
• Weight: 130g
• Dimensions: 60mm x 110mm

The EURV-PI Optical Smoke Detector is ideal for protecting both residential and commercial spaces, ensuring safety through a high level of performance and ease of integration.

Downloads:

100-2101V Datasheet
