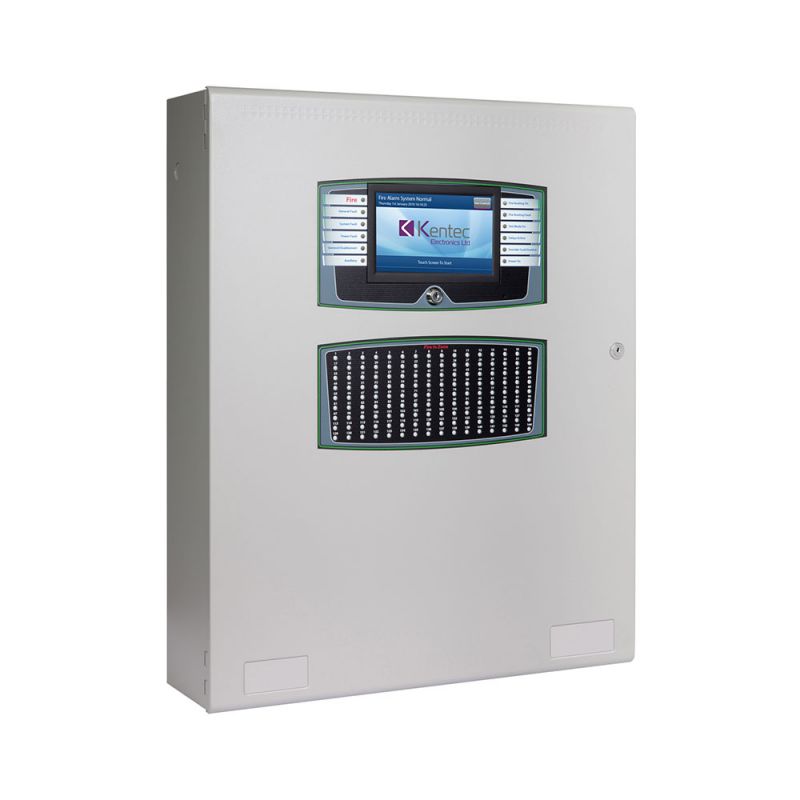

Kentec TAAEE21110A1 Taktis 2-Loop Analog Fire Alarm Control Panel – Advanced Fire Detection System
The Kentec TAAEE21110A1 Taktis 2-Loop Fire Alarm Control Panel is a powerful and flexible fire detection solution that integrates advanced hardware and software for both simple and complex systems. Featuring a 7″ full-color touchscreen, the panel offers an intuitive interface that minimizes user training. It supports 126 Apollo protocol addressable elements and has a 4-slot version to expand the system up to 16 loops, with each slot supporting a 2-loop detection card. Ideal for a wide range of applications, the system is designed to handle over 2000 detection devices.
The panel includes 48 zone indicators, 24 programmable function keys, 4 programmable siren outputs, 3 programmable inputs, and 5 relay outputs (re-programmable). The Kentec Taktis is networkable, allowing up to 128 panels to be connected. Connectivity is enabled with the Media Gateway card, and memory is expandable via an SD card. Certified to EN54-2 and EN54-4, it supports up to 26Ah batteries and includes a 5.25A power supply. The unit is housed in a durable 1.5mm steel sheet standard box and is equipped with 2 aperture doors for easy access.
Key Features:
- Apollo protocol support with 126 addressable elements per loop.
- 2-8 loop support with up to 16 loops for large systems.
- 7” color touchscreen with intuitive interface.
- 48 zone indicators for clear system status.
- Expandable memory with SD card.
- Supports up to 128 networked panels for large-scale integration.
- Supports up to 26Ah batteries and 5.25A power supply.
- EN54-2 and EN54-4 certified for fire safety compliance.
- 24 programmable function keys for ease of use.
- Modular electronics with spare slots for input/output expansion.
Perfect for both commercial and industrial fire alarm systems, the Kentec Taktis control panel is scalable, reliable, and easy to configure, offering advanced features for comprehensive fire safety management.
